KBU801-G, KBU8005-G Datasheet - Comchip

KBU801-G - Silicon Bridge Rectifiers

KBU801-G Features

* -Surge overload rating -200 amperes peak. -Ideal for printed circuit board. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic, KBU -Mounting position: Any. -Weight: 7.40 grams (approx.). 0.700(17.8) 0.600(16.8) KBU 0.157(4.0)

* 45° 0.935

KBU8005-G-Comchip.pdf

This datasheet PDF includes multiple part numbers: KBU801-G, KBU8005-G. Please refer to the document for exact specifications by model.

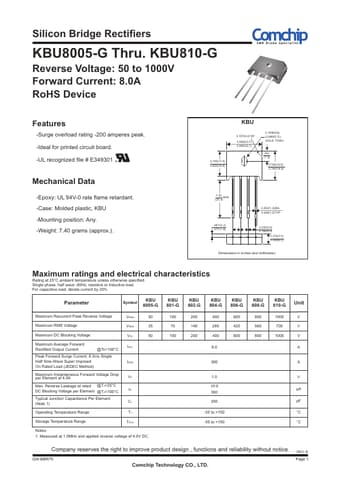

KBU801-G Datasheet Preview Page 2 KBU801-G Datasheet Preview Page 3

Datasheet Details

Part number:

KBU801-G, KBU8005-G

Manufacturer:

Comchip

File Size:

77.41 KB

Description:

Silicon bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: KBU801-G, KBU8005-G.
Please refer to the document for exact specifications by model.
