SS8050-G - General Purpose Transistor

Comchip

Datasheet Details

Part number	SS8050-G
Manufacturer	Comchip
File Size	125.09 KB
Description	General Purpose Transistor
Datasheet	SS8050-G Datasheet
Additional preview pages of the SS8050-G datasheet.

📁 Similar Datasheet

SS8050-C - NPN Silicon Transistors (MCC)
SS8050-D - NPN Silicon Transistors (MCC)
SS8050 - Silicon NPN Power Transistor (INCHANGE)
SS8050 - NPN Epitaxial Silicon Transistor (ON Semiconductor)
SS8050 - NPN Transistor (Weitron Technology)
SS8050 - NPN Epitaxial Silicon Transistor (Fairchild Semiconductor)
SS8050 - Silicon Epitaxial Planar Transistor (GME)
SS8050 - NPN Silicon Transistor (SeCoS)
SS8050 - NPN Transistor (Bruckewell)
SS8050 - NPN EPITAXIAL SILICON TRANSISTOR (Samsung)

Other Datasheets by Comchip

Full PDF Text Transcription

Click to expand full text

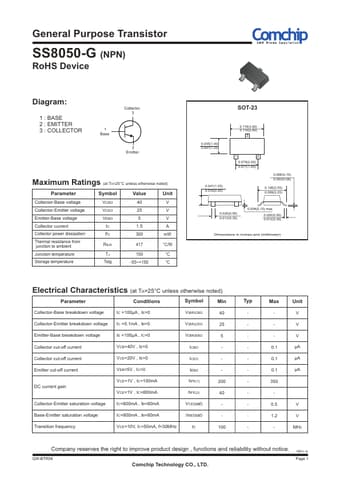

General Purpose Transistor SS8050-G (NPN) RoHS Device Diagram: 1 : BASE 2 : EMITTER 3 : COLLECTOR 1 Base Collector 3 2 Emitter Maximum Ratings (at TA=25°C unless otherwise noted) Parameter Collector-Base voltage Collector-Emitter voltage Emitter-Base voltage Collector current Collector power dissipation Thermal resistance from junction to ambient Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg Value 40 25 5 1.5 300 417 150 -55~+150 Unit V V V A mW °C/W °C °C SOT-23 0.055(1.40) 0.047(1.20) 0.041(1.05) 0.035(0.90) 0.118(3.00) 0.110(2.80) 3 12 0.079(2.00) 0.071(1.80) 0.006(0.15) 0.003(0.08) 0.100(2.55) 0.089(2.25) 0.020(0.50) 0.012(0.30) 0.004(0.10) max 0.020(0.50) 0.012(0.

Published: Jul 20, 2016 |
