SS8050BBU - NPN Epitaxial Silicon Transistor

Product Overview

Fairchild Semiconductor

Part number	SS8050BBU
Manufacturer	Fairchild Semiconductor
File Size	158.83 KB
Description	NPN Epitaxial Silicon Transistor
Datasheet	SS8050BBU Datasheet
Note	This datasheet PDF includes multiple part numbers: SS8050BBU, SS8050. Please refer to the document for exact specifications by model.

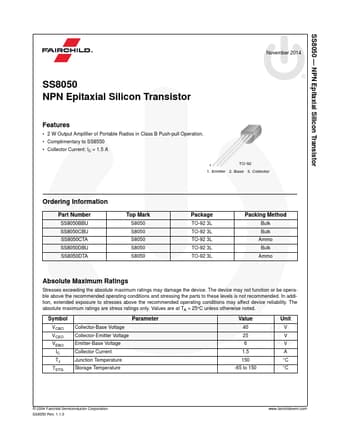

Additional preview pages of the SS8050BBU datasheet.

2 W Output Amplifier of Portable Radios in Class B Push-pull Operation.
Complimentary to SS8550.
Collector Current: IC = 1.5 A 1 TO-92 1. Emitter 2. Base 3. Collector Ordering Information Part Number SS8050BBU SS8050CBU SS8050CTA SS8050DBU SS8050DTA Top Mark S8050 S8050 S8050 S8050 S8050 Package TO-92 3L TO-92 3L TO-92 3L TO-92 3L TO-92 3L Packing Method Bulk Bulk Ammo Bulk Ammo Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may dam.
