SS8050W - NPN Silicon Transistor

Product Overview

SeCoS

📥 Download Datasheet

SS8050W NPN Silicon Transistor by SeCoS - Datasheet Preview — Datasheet preview – SS8050W

Datasheet Details

Part number	SS8050W
Manufacturer	SeCoS
File Size	254.58 KB
Description	NPN Silicon Transistor
Datasheet	SS8050W Datasheet
Additional preview pages of the SS8050W datasheet.

Product details

Features

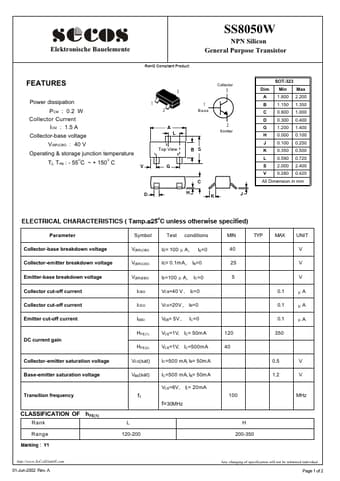

Power dissipation PCM : 0.2 W Collector Current ICM : 1.5 A Collector-base voltage V(BR)CBO : 40 V Operating & storage junction temperature Tj, Tstg : - 55OC ~ + 150O C V 1 2 3 A L 3 Top View 12 G Collector 3 1 Base 2 Emitter BS C D HK J SOT-323 Dim Min Max A 1.800 2.200 B 1.150 1.350 C 0.800 1.000 D 0.300 0.400 G 1.200 1.400 H 0.000 0.100 J 0.100 0.250 K 0.350 0.500 L 0.590 0.720 S 2.000 2.400 V 0.280 0.420 All Dimension in mm.
