SS8550W - PNP Transistor

Product Overview

SeCoS

📥 Download Datasheet

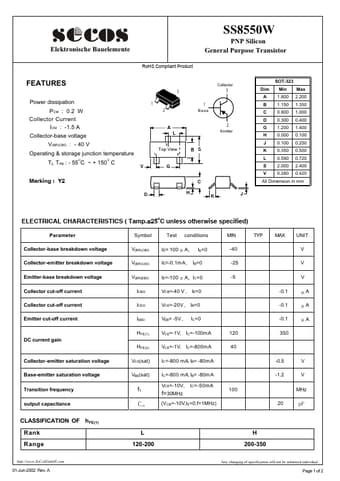

SS8550W PNP Transistor by SeCoS - Datasheet Preview — Datasheet preview – SS8550W

Datasheet Details

Part number	SS8550W
Manufacturer	SeCoS
File Size	111.09 KB
Description	PNP Transistor
Datasheet	SS8550W Datasheet
Additional preview pages of the SS8550W datasheet.

Product details

Features

Power dissipation PCM : 0.2 W Collector Current ICM : -1.5 A Collector-base voltage V(BR)CBO : - 40 V Operating & storage junction temperature Tj, Tstg : - 55OC ~ + 150O C V 1 2 3 A L 3 Top View 12 G Collector 3 1 Base 2 Emitter BS Marking : Y2 C D HK J SOT-323 Dim Min Max A 1.800 2.200 B 1.150 1.350 C 0.800 1.000 D 0.300 0.400 G 1.200 1.400 H 0.000 0.100 J 0.100 0.250 K 0.350 0.500 L 0.590 0.720 S 2.000 2.400 V 0.280 0.420 All Dimension in mm.
