6532 - MEMORY / TIMER ARRAY

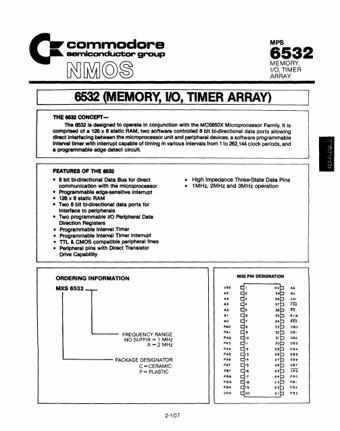

,..,commodore ~ aernlconduct:or group [K!J~@~ MPS 6532 MEMORY, I/O, TIMER ARRAY 6532 (MEMORY, 110, TIMER ARRAY) THE 8532 CONCEPT- The 6532 Is designed to operate In conjunction with the MCS650X Microprocessor Family.

It is comprised of a 128 x 8 static RAM, two software controlled 8 bit bl-dlrectional data ports allowing direct Interfacing between the microprocessor unit and peripheral devices, a software programmable Interval timer with Interrupt capable of timing In various Intervals from 1

6532 Features

* OF THE 8532

* 8 bit bl-dlrectlonal Data Bus for direct communication with the microprocessor

* Programmable edge-sensitive Interrupt

* 128 x 8 static RAM

* Two 8 bit bl-dlrectlonal data ports for Interface to peripherals

* Two programmable 110 Peripheral Data
