1N4582 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%

📥 Download Datasheet

Datasheet preview – 1N4582

Datasheet Details

Part number 1N4582
Manufacturer Compensated Deuices Incorporated
File Size 243.63 KB
Description 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%
Datasheet download datasheet 1N4582 Datasheet
Additional preview pages of the 1N4582 datasheet.

📁 Similar Datasheet

  • 1N4582 - 6.4V TEMPERATURE COMPENSATED ZENER DIODE (Digitron Semiconductors)
  • 1N4582 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4582-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4582-1 - Zener Reference Diode (MA-COM)
  • 1N4582-1 - Zener Reference Diode (Aeroflex)
  • 1N4582A - 6.4V TEMPERATURE COMPENSATED ZENER DIODE (Digitron Semiconductors)
  • 1N4582A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4582A-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4582A-1 - Zener Reference Diode (MA-COM)
  • 1N4582A-1 - Zener Reference Diode (Aeroflex)
Other Datasheets by Compensated Deuices Incorporated
  • 1N4582AUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4580 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%
  • 1N4580AUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4581 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%
  • 1N4581AUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4583 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%
  • 1N4583AUR-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4584 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5%

Full PDF Text Transcription

Click to expand full text

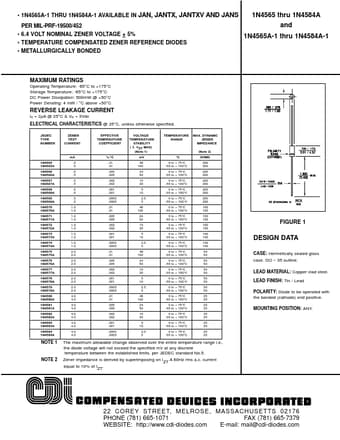

• 1N4565A-1 THRU 1N4584A-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/452 • 6.4 VOLT NOMINAL ZENER VOLTAGE + 5% • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • METALLURGICALLY BONDED 1N4565 thru 1N4584A and 1N4565A-1 thru 1N4584A-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 2µA @ 25°C & VR = 3Vdc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified. JEDEC TYPE NUMBER ZENER TEST CURRENT EFFECTIVE TEMPERATURE COEFFICIENT VOLTAGE TEMPERATURE STABILITY ( ∆ VZT MAX) (Note 1) mV 48 100 24 50 10 20 5 10 2.5 5 48 100 24 50 10 20 5 10 2.5 5 48 100 24 50 10 20 5 10 2.5 5 48 100 24 50 10 20 5 10 2.
