1N458 - SWITCHING DIODE

Datasheet Summary

Features

  • 1N458.
  • 1N458.

📥 Download Datasheet

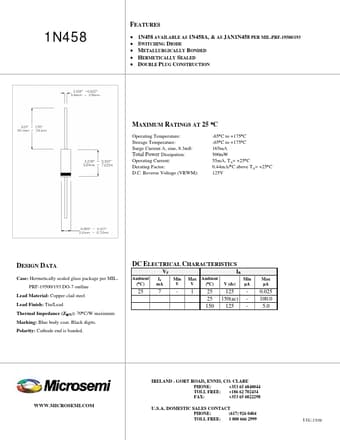

Datasheet preview – 1N458

Datasheet Details

Part number 1N458
Manufacturer Microsemi Corporation
File Size 69.91 KB
Description SWITCHING DIODE
Datasheet download datasheet 1N458 Datasheet
Additional preview pages of the 1N458 datasheet.

📁 Similar Datasheet

  • 1N4580 - 6.4 VOLT NOMINAL ZENER VOLTAGE + 5% (Compensated Deuices Incorporated)
  • 1N4580 - 6.4V TEMPERATURE COMPENSATED ZENER DIODE (Digitron Semiconductors)
  • 1N4580 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4580-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4580-1 - Zener Reference Diode (MA-COM)
  • 1N4580-1 - Zener Reference Diode (Aeroflex)
  • 1N4580A - 6.4V TEMPERATURE COMPENSATED ZENER DIODE (Digitron Semiconductors)
  • 1N4580A - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4580A-1 - TEMPERATURE COMPENSATED ZENER REFERENCE DIODES (Microsemi)
  • 1N4580A-1 - Zener Reference Diode (MA-COM)
Other Datasheets by Microsemi Corporation
  • 1N4580AUR-1 - (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4581AUR-1 - (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4582AUR-1 - (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4583AUR-1 - (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4584AUR-1 - (1N4565AUR-1 - 1N4584AUR-1) TEMPERATURE COMPENSATED ZENER REFERENCE DIODES
  • 1N4508 - Silicon Diode
  • 1N4525 - (1N4525 - 1N4529) SILICON POWER RECTIFIER
  • 1N4526 - (1N4525 - 1N4529) SILICON POWER RECTIFIER

Full PDF Text Transcription

Click to expand full text
FEATURES 1N458 • • • • • 1N458 AVAILABLE AS 1N458A, & AS JAN1N458 PER MIL-PRF-19500/193 SWITCHING DIODE METALLURGICALLY BONDED HERMETICALLY SEALED DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS AT 25 °C Operating Temperature: Storage Temperature: Surge Current A, sine, 8.3mS: Total Power Dissipation: Operating Current: Derating Factor: D.C. Reverse Voltage (VRWM): -65°C to +175°C -65°C to +175°C 165mA 500mW 55mA, TA= +25°C 0.44mA/°C above TA= +25°C 125V DESIGN DATA Case: Hermetically sealed glass package per MILPRF-19500/193 DO-7 outline Lead Material: Copper clad steel Lead Finish: Tin/Lead Thermal Impedance (ZθJX): 70°C/W maximum Marking: Blue body coat. Black digits. Polarity: Cathode end is banded.
