1N5314-1 Datasheet - Compensated Deuices Incorporated

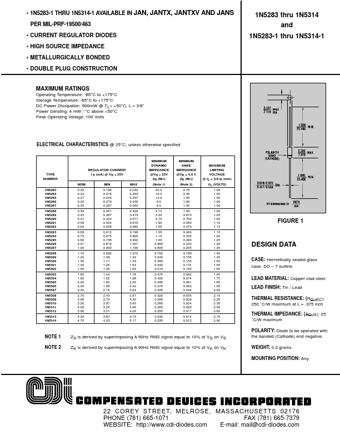

1N5314-1 CURRENT REGULATOR DIODES

1N5283-1 THRU 1N5314-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/463 CURRENT REGULATOR DIODES HIGH SOURCE IMPEDANCE METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION 1N5283 thru 1N5314 and 1N5283-1 thru 1N5314-1 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ TL= +50°C, L = 3/8” Power Derating: 4 mW / °C above +50°C Peak Operating Voltage: 100 Volts ELECTR.

1N5314-1_CompensatedDeuicesIncorporated.pdf
