1N5314UR-1 Datasheet - Compensated Deuices Incorporated

1N5314UR-1 CURRENT REGULATOR DIODES

1N5283UR-1 THRU 1N5314UR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS 1N5283UR-1 thru 1N5314UR-1 PER MIL-PRF-19500/463 CURRENT REGULATOR DIODES LEADLESS PACKAGE FOR SURFACE MOUNT METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION and CDLL5283 thru CDLL5314 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +75°C @ TEC = +125°C Power Derating: 10 mW / °C above TEC = +125°C Peak Op.

1N5314UR-1_CompensatedDeuicesIncorporated.pdf

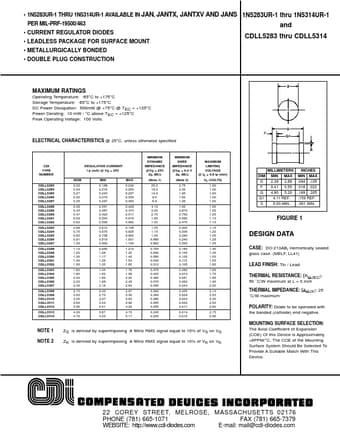

Preview of 1N5314UR-1 PDF
1N5314UR-1 Datasheet Preview Page 2

Datasheet Details

Part number:

1N5314UR-1

Manufacturer:

Compensated Deuices Incorporated

File Size:

27.53 KB

Description:

Current regulator diodes.
