1N6485US Datasheet - Compensated Deuices Incorporated

1N6485US 1.5 WATT ZENER DIODES

AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/406 1.5 WATT ZENER DIODES NON CAVITY CONSTRUCTION METALLURGICALLY BONDED 1N6485US THRU 1N6491US AND 1N4460US AND 1N4461US MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +200°C Power Dissapation: 1.5W @ TA=+25°C Power Derating: 10mW/°C above TA=+25°C Forward Voltage: 1.0V dc @ IF=200mA dc 1.5 V dc @ IF=1A dc ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise.

1N6485US Datasheet (107.96 KB)

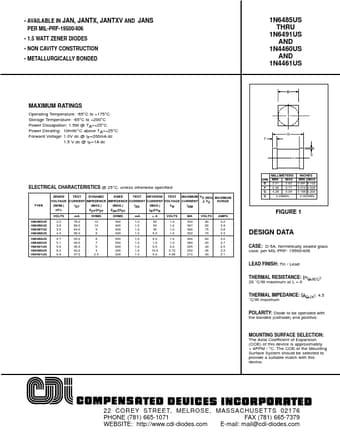

Preview of 1N6485US PDF
1N6485US Datasheet Preview Page 2

Datasheet Details

Part number:

1N6485US

Manufacturer:

Compensated Deuices Incorporated

File Size:

107.96 KB

Description:

1.5 watt zener diodes.
