1N6484, 1N6478 Datasheet - Vishay

1N6484 Surface Mount Glass Passivated Junction Rectifier

1N6478, 1N6479, 1N6480, 1N6481, 1N6482, 1N6483, 1N6484 www.vishay.com Vishay General Semiconductor Surface Mount Glass Passivated Junction Rectifier SUPERECTIFIER® DO-213AB PRIMARY CHARACTERISTICS IF(AV) VRRM 1.0 A 50 V, 100 V, 200 V, 400 V, 600 V, 800 V, 1000 V IFSM IR VF TJ max. Package 30 A 10 μA 1.1 V 175 °C DO-213AB Diode variations Single die TYPICAL APPLICATIONS For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consu.

1N6484 Features

* Superectifier structure for high reliability condition

* Ideal for automated placement

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C

* AEC-Q101 q

1N6478-Vishay.pdf

This datasheet PDF includes multiple part numbers: 1N6484, 1N6478. Please refer to the document for exact specifications by model.

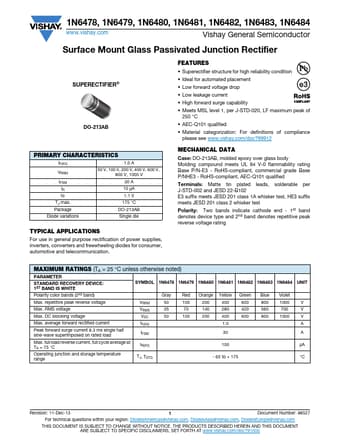

1N6484 Datasheet Preview Page 2 1N6484 Datasheet Preview Page 3

Datasheet Details

Part number:

1N6484, 1N6478

Manufacturer:

Vishay ↗

File Size:

75.21 KB

Description:

Surface mount glass passivated junction rectifier.

Note:

This datasheet PDF includes multiple part numbers: 1N6484, 1N6478.
Please refer to the document for exact specifications by model.
