CD3154 Datasheet - Compensated Deuices Incorporated

CD3154 8.4 VOLT NOMINAL ZENER VOLTAGE + 5%

MONOLITHIC TEMPERATURE COMPENSATED ZENER REFERENCE CHIPS ALL JUNCTIONS COMPLETELY PROTECTED WITH SILICON DIOXIDE 8.4 VOLT NOMINAL ZENER VOLTAGE + 5% ELECTRICALLY SIMILAR TO 1N3154 THRU 1N3156 COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES, WITH THE EXCEPTION OF SOLDER REFLOW CD3154 thru CD3156 38 MILS 23 MILS MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C 38 MILS 10 MILS 23 MILS FIGURE .

CD3154_CompensatedDeuicesIncorporated.pdf

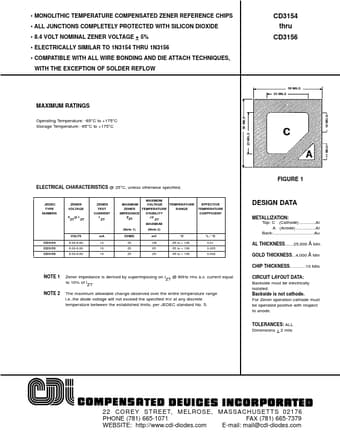

Preview of CD3154 PDF
CD3154 Datasheet Preview Page 2

Datasheet Details

Part number:

CD3154

Manufacturer:

Compensated Deuices Incorporated

File Size:

106.83 KB

Description:

8.4 volt nominal zener voltage + 5%.
