CD6676, CD6675 Datasheet - Compensated Deuices Incorporated

CD6675-CompensatedDeuicesIncorporated.pdf

This datasheet PDF includes multiple part numbers: CD6676, CD6675. Please refer to the document for exact specifications by model.

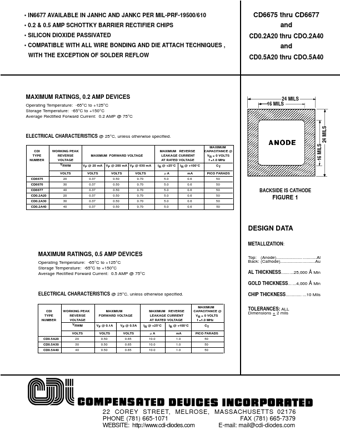

CD6676 Datasheet Preview Page 2

Datasheet Details

Part number:

CD6676, CD6675

Manufacturer:

Compensated Deuices Incorporated

File Size:

74.13 KB

Description:

Schottky barrier rectifier.

Note:

This datasheet PDF includes multiple part numbers: CD6676, CD6675.
Please refer to the document for exact specifications by model.

CD6676, CD6675, SCHOTTKY BARRIER RECTIFIER

16 MILS 24 MILS IN6677 AVAILABLE IN JANHC AND JANKC PER MIL-PRF-19500/610 0.2 & 0.5 AMP SCHOTTKY BARRIER RECTIFIER CHIPS SILICON DIOXIDE PASSIVATED COMPATIBLE WITH ALL WIRE BONDING AND DIE ATTACH TECHNIQUES , WITH THE EXCEPTION OF SOLDER REFLOW CD6675 thru CD6677 and CD0.2A20 thru CDO.2A40 and CD0.5A20 thru CDO.5A40 MAXIMUM RATINGS, 0.2 AMP DEVICES Operating Temperature: -65°C to +125°C Storage Temperature: -65°C to +150°C Average Rectified Forward Curr
