CDLL4153 Datasheet - Compensated Deuices Incorporated

CDLL4153 SWITCHING DIODE

www.DataSheet4U.com 1N4153UR-1 AVAILABLE IN JAN, JANTX, AND JANTXV PER MIL-PRF-19500/337 SWITCHING DIODE HERMETICALLY SEALED METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION 1N4153UR-1 CDLL4153 MAXIMUM RATINGS Junction Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Operating Current: 150 mA @ TA = +25°C Derating: 1.0 mA dc/°C Above TA = +25°C Forward Surge Current: 2A (pk), (tp = 1µs); 0.25A (pk), (tp = 1s) ELECTRICAL CHARAC.

CDLL4153_CompensatedDeuicesIncorporated.pdf

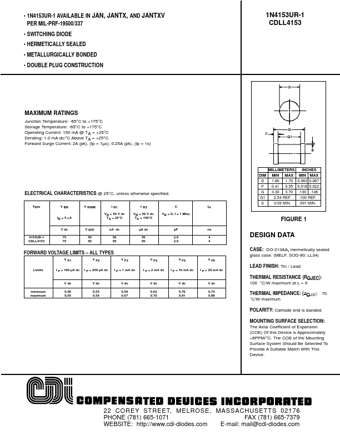

Preview of CDLL4153 PDF
CDLL4153 Datasheet Preview Page 2

Datasheet Details

Part number:

CDLL4153

Manufacturer:

Compensated Deuices Incorporated

File Size:

61.31 KB

Description:

Switching diode.
