CDLL4576A Datasheet - Compensated Deuices Incorporated

CDLL4576A TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

1N4565AUR-1 THRU 1N4584AUR-1 AVAILABLE IN JAN, JANTX, JANTXV AND JANS 1N4565AUR-1 thru 1N4584AUR-1 PER MIL-PRF-19500/452 and TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT LOW CURRENT OPERATING RANGE: 0.5 TO 4.0 mA METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / .

CDLL4576A Datasheet (253.12 KB)

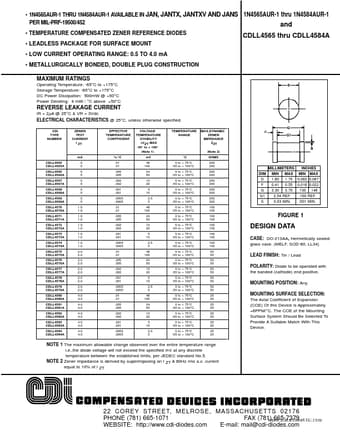

CDLL4576A Datasheet Preview — Preview of CDLL4576A PDF

Datasheet Details

Part number:

CDLL4576A

Manufacturer:

Compensated Deuices Incorporated

File Size:

253.12 KB

Description:

Temperature compensated zener reference diodes.
