CDLL4099-1, CDLL4614-1 Datasheet - Microsemi

CDLL4099-1 500mW Metallurgically Bonded Glass Surface Mount Zener Diodes

The 1N4099UR-1 through 1N4135UR-1 and 1N4614UR-1 through 1N4627UR-1 series are 500 mW, Zener voltage regulators in the surface mount, glass DO-213AA package. Voltages from 1.8 to 100V in 5%, 2%, and 1% tolerances are available. They are constructed with an internal metallurgical bond and are mil-qu.

CDLL4099-1 Features

* Surface mount equivalent to JEDEC registered 1N4099 through 1N4135 and 1N4614 through 1N4627 series.

* Internal metallurgical bond.

* Max noise density 40 μV / √Hz for 6.8 V and up. Falls quickly to 1 μV / √Hz at lower voltages.

* JAN, JANTX, JANTXV and JANS qualifi

CDLL4614-1-Microsemi.pdf

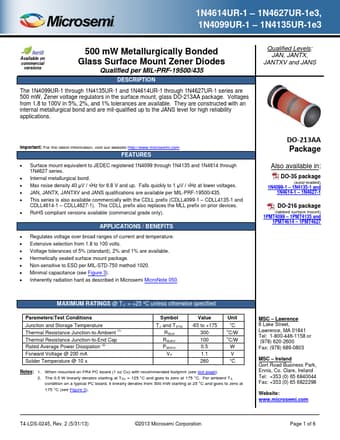

CDLL4099-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: CDLL4099-1, CDLL4614-1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CDLL4099-1, CDLL4614-1

Manufacturer:

Microsemi ↗

File Size:

291.89 KB

Description:

500mw metallurgically bonded glass surface mount zener diodes.

Note:

This datasheet PDF includes multiple part numbers: CDLL4099-1, CDLL4614-1.
Please refer to the document for exact specifications by model.
