CDLL4782 Datasheet - Compensated Deuices Incorporated

CDLL4782 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 8.5 VOLT NOMINAL ZENER VOLTAGE + 5% LOW CURRENT RANGE: 0.5 TO 1.0 mA METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION CDLL4775 thru CDLL4784A MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C REVERSE LEAKAGE CURRENT lR = 10µ A @ 25°C & VR =.

CDLL4782 Datasheet (73.40 KB)

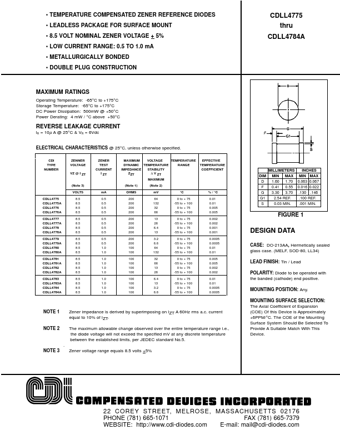

CDLL4782 Datasheet Preview — Preview of CDLL4782 PDF

Datasheet Details

Part number:

CDLL4782

Manufacturer:

Compensated Deuices Incorporated

File Size:

73.40 KB

Description:

Temperature compensated zener reference diodes.
