CDLL4912 TEMPERATURE COMPENSATED ZENER REFERENCE DIODES

TEMPERATURE COMPENSATED ZENER REFERENCE DIODES LEADLESS PACKAGE FOR SURFACE MOUNT 12.8 VOLT NOMINAL ZENER VOLTAGE + 5% LOW NOISE METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C CDLL4896 thru CDLL4915A REVERSE LEAKAGE CURRENT lR = 15µ A @ 25°C & VR = 8Vdc ELECTRICAL CHARAC.

CDLL4912 Datasheet (68.37 KB)

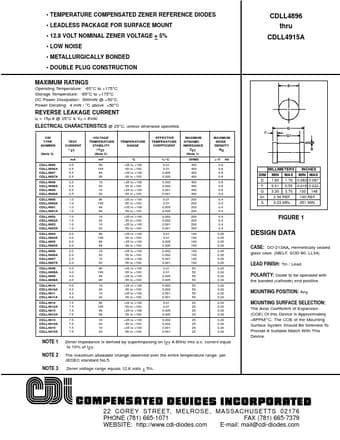

CDLL4912 Datasheet Preview — Preview of CDLL4912 PDF

Datasheet Details

Part number:

CDLL4912

Manufacturer:

Compensated Deuices Incorporated

File Size:

68.37 KB

Description:

Temperature compensated zener reference diodes.
