DSB05A20 Datasheet - Compensated Deuices Incorporated

DSB05A20 0.2 AND 0.5 AMP SCHOTTKY BARRIER RECTIFIERS

1N6677-1 AVAILABLE IN PER MIL-PRF-19500/610 JAN, JANTX, JANTXV AND JANS 1N6675 thru 1N6677 and DSB0.2A20 thru DSB0.2A40 and DSB0.5A20 thru DSB0.5A40 0.2 AND 0.5 AMP SCHOTTKY BARRIER RECTIFIERS HERMETICALLY SEALED METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION MAXIMUM RATINGS - 0.2 AMP DEVICES Operating Temperature: -65°C to +125°C Storage Temperature: -65°C to +150°C Average Rectified Forward Current: 0.2 AMP @TL = +100°C, =3/8” Derating: 8..

DSB05A20 Datasheet (69.90 KB)

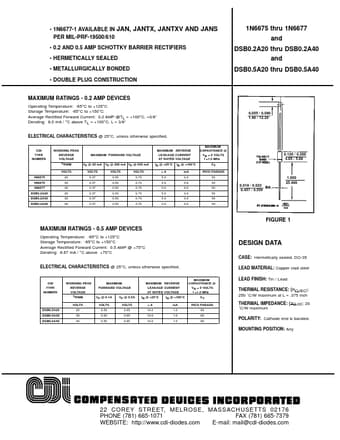

DSB05A20 Datasheet Preview — Preview of DSB05A20 PDF

Datasheet Details

Part number:

DSB05A20

Manufacturer:

Compensated Deuices Incorporated

File Size:

69.90 KB

Description:

0.2 and 0.5 amp schottky barrier rectifiers.
