J5822 Datasheet - Compensated Deuices Incorporated

J5822 3 AMP SCHOTTKY BARRIER RECTIFIERS

1N5822 AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/620 3 AMP SCHOTTKY BARRIER RECTIFIERS HERMETICALLY SEALED METALLURGICALLY BONDED 1N5822 and DSB5820 thru DSB5822 and DSB3A20 thru DSB3A40 MAXIMUM RATINGS 0.115/0.145 Operating Temperature: -65°C to +125°C Storage Temperature: -65°C to +150°C Average Rectified Forward Current: 3.0 AMP @ TL = +55°C, L = 3/8” Derating: 43 mA / °C above TL = +55°C, L = 3/8” 2.92/3.68 0.130/0.195 3.30/4.95 .

J5822 Datasheet (36.18 KB)

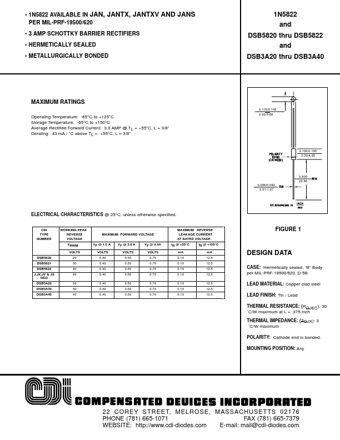

J5822 Datasheet Preview — Preview of J5822 PDF

Datasheet Details

Part number:

J5822

Manufacturer:

Compensated Deuices Incorporated

File Size:

36.18 KB

Description:

3 amp schottky barrier rectifiers.
