J5822US Datasheet - Compensated Deuices Incorporated

J5822US 3 AMP SCHOTTKY BARRIER RECTIFIERS

1N5822US AVAILABLE IN JAN, JANTX, JANTXV AND JANS PER MIL-PRF-19500/620 3 AMP SCHOTTKY BARRIER RECTIFIERS HERMETICALLY SEALED LEADLESS PACKAGE FOR SURFACE MOUNT METALLURGICALLY BONDED, DOUBLE PLUG CONSTRUCTION 1N5820US thru 1N5822US MAXIMUM RATINGS Operating Temperature: -65°C to +125°C Storage Temperature: -65°C to +150°C Average Rectified Forward Current: 3.0 AMP, TEC = +55°C Derating: 43 mA / °C above TEC = +55°C DIM D F G S MILLIMETERS MI.

J5822US Datasheet (39.91 KB)

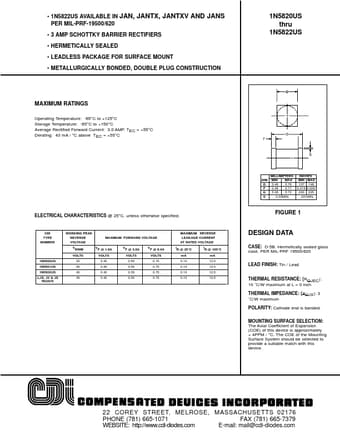

J5822US Datasheet Preview — Preview of J5822US PDF

Datasheet Details

Part number:

J5822US

Manufacturer:

Compensated Deuices Incorporated

File Size:

39.91 KB

Description:

3 amp schottky barrier rectifiers.
