C75D250P Datasheet - Component General

C75D250P Microwave Disc Resistors

__ Microwave Thick Film Disc Resistors _ MECHANICAL SPECIFICATIONS Substrate: Std. Tolerance: Terminals: Temperature Range: Beryllium Oxide Ceramic Standard Resistance Tolerance ± 2% at 25°C Proprietary silver terminal material on both sides connected with wrap-around terminals on I.D. and O.D. Resistor on one side only. -55°C to +200°C. www.DataSheet4U.com high power thick film disc resistors product selection chart Nominal I.D. O.D. Width Power 5W 10 W 0.066" - 0.074" 0.131" - 0.139" 0.245" -.

C75D250P Datasheet (192.24 KB)

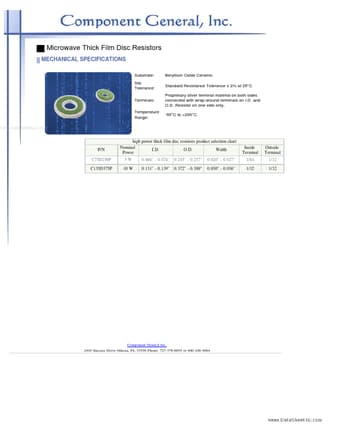

Preview of C75D250P PDF
C75D250P Datasheet Preview Page 2 C75D250P Datasheet Preview Page 3

Datasheet Details

Part number:

C75D250P

Manufacturer:

Component General

File Size:

192.24 KB

Description:

Microwave disc resistors.
