C7563X7R1E476M230LE MULTILAYER CERAMIC CHIP CAPACITORS

(internal control number) on the product label. Contact your local TDK Sales representative for more information. (Example) Catalog issued date Prior to December 2012 January 2013 and later Catalog number C1608C0G1E103J(080AA) C1608C0G1E103J080AA Item description (on delivery label) C1608C0G1E103.

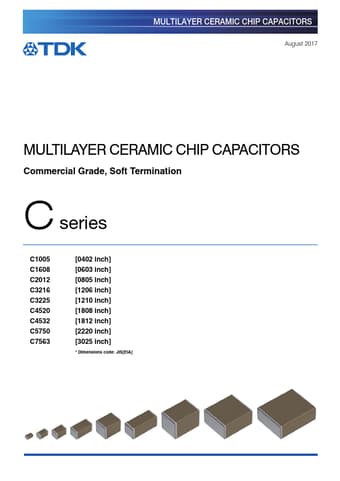

MULTILAYER CERAMIC CHIP CAPACITORS August 2017 MULTILAYER CERAMIC CHIP CAPACITORS Commercial Grade, Soft Termination C series C1005 C1608 C2012 C3216 C3225 C4520 C4532 C5750 C7563 [0402 inch] [0603 inch] [0805 inch] [1206 inch] [1210 inch] [1808 inch] [1812 inch] [2220 inch] [3025 inch] Dimensions code: JIS[EIA] (2/18) MULTILAYER CERAMIC CHIP CAPACITORS REMINDERS FOR USING THESE PRODUCTS Before using these products, be sure to request the delivery specifications. SAFETY REMINDERS Plea.

C7563X7R1E476M230LE Features

* Higher mechanical endurance is realized by flexible resin layers.

* X8R type which maximum temperature is up to 150°C is applicable.

* C0G temperature characteristic which has excellent stable tempera- ture and DC-bias characteristcs is applicable. ˙ APPLICATIONS
