2N2322 Datasheet - Comset Semiconductors

2N2322 (2N2322 - 2N2326) SILICON THYRISTORS

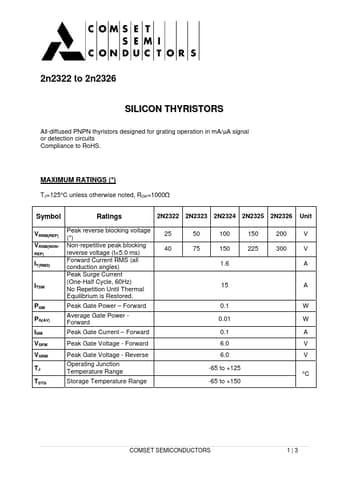

2n2322 to 2n2326 SILICON THYRISTORS All-diffused PNPN thyristors designed for grating operation in mA/µA signal or detection circuits Compliance to RoHS. MAXIMUM RATINGS ( ) TJ=125°C unless otherwise noted, RGK=1000Ω Symbol VRRM(REP) VRSM(NONREP) Ratings Peak reverse blocking voltage ( ) Non-repetitive peak blocking reverse voltage (t<5.0 ms) Forward Current RMS (all conduction angles) Peak Surge Current (One-Half Cycle, 60Hz) No Repetition Until Thermal Equilibrium is Restored. Peak .

2N2322_ComsetSemiconductors.pdf

Preview of 2N2322 PDF
2N2322 Datasheet Preview Page 2 2N2322 Datasheet Preview Page 3

Datasheet Details

Part number:

2N2322

Manufacturer:

Comset Semiconductors

File Size:

129.66 KB

Description:

(2n2322 - 2n2326) silicon thyristors.
