2N2323 (2N2322 - 2N2326) SILICON THYRISTORS

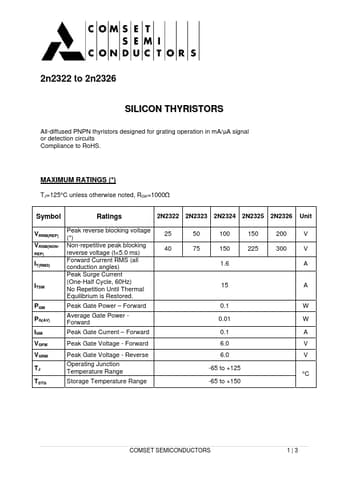

2n2322 to 2n2326 SILICON THYRISTORS All-diffused PNPN thyristors designed for grating operation in mA/µA signal or detection circuits Compliance to RoHS. MAXIMUM RATINGS ( ) TJ=125°C unless otherwise noted, RGK=1000Ω Symbol VRRM(REP) VRSM(NONREP) Ratings Peak reverse blocking voltage ( ) Non-repetitive peak blocking reverse voltage (t<5.0 ms) Forward Current RMS (all conduction angles) Peak Surge Current (One-Half Cycle, 60Hz) No Repetition Until Thermal Equilibrium is Restored. Peak .

2N2322_ComsetSemiconductors.pdf

This datasheet PDF includes multiple part numbers: 2N2323, 2N2322. Please refer to the document for exact specifications by model.
