BUX21A Datasheet - Comset Semiconductors

BUX21A HIGH POWER DISSIPATION TRANSISTOR

NPN BUX21A HIGH CURRENT, HIGH SPEED , HIGH POWER DISSIPATION TRANSISTOR The BUX21A is silicon multiepitaxial planar NPN transistors in Jedec TO-3. They are intended for use in switching and linear appications in military and industrial equipment. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO VCBO VEBO VCEX IC ICM IB Pt TJ TStg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector-Emitter Voltage Collector Current Collector Peak Current Base Current Total Pow.

BUX21A_ComsetSemiconductors.pdf

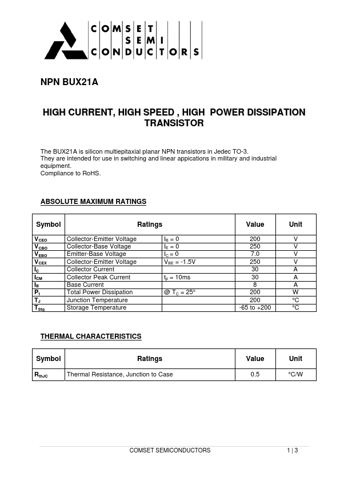

Preview of BUX21A PDF
BUX21A Datasheet Preview Page 2 BUX21A Datasheet Preview Page 3

Datasheet Details

Part number:

BUX21A

Manufacturer:

Comset Semiconductors

File Size:

126.76 KB

Description:

High power dissipation transistor.
