TIC108S Datasheet - Comset Semiconductors

TIC108S SILICON CONTROLLED RECTIFIERS

SEMICONDUCTORS TIC108A, TIC108B, TIC108C, TIC108D, TIC108E, TIC108M, TIC108N, TIC108S SILICON CONTROLLED RECTIFIERS 5 A Continuous On-State Current 20 A Surge-Current Glass Passivated Wafer 100 V to 800 V Off-State Voltage Max IGT of 1 mA Compliance to ROHS ABSOLUTE MAXIMUM RATINGS Value A VDRM VRRM IT(RMS) IT(AV) ITM IGM PGM PG(AV) TC Tstg TL Notes: 1. 2. 3. 4. 5. 21/06/2012 Page 1 of 3 These values apply when the gate-cathode resist.

TIC108S Datasheet (250.78 KB)

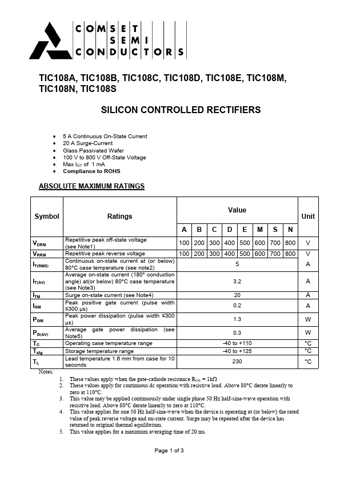

Preview of TIC108S PDF

Datasheet Details

Part number:

TIC108S

Manufacturer:

Comset Semiconductors

File Size:

250.78 KB

Description:

Silicon controlled rectifiers.
