TIP34B, TIP34 Datasheet - Comset Semiconductors

TIP34B Silicon Power Transistors

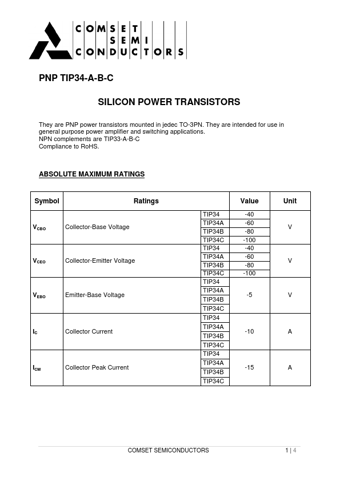

SEMICONDUCTORS PNP TIP34-A-B-C SILICON POWER TRANSISTORS They are PNP power transistors mounted in jedec TO-3PN. They are intended for use in general purpose power amplifier and switching applications. NPN complements are TIP33-A-B-C Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings TIP34 TIP34A TIP34B TIP34C TIP34 TIP34A TIP34B TIP34C TIP34 TIP34A TIP34B TIP34C TIP34 TIP34A TIP34B TIP34C TIP34 TIP34A TIP34B TIP34C Value -40 -60 -80 -100 -40 -60 -80 -100 Unit VCBO Collector-Bas.

TIP34_ComsetSemiconductors.pdf

This datasheet PDF includes multiple part numbers: TIP34B, TIP34. Please refer to the document for exact specifications by model.
TIP34B Datasheet Preview Page 2 TIP34B Datasheet Preview Page 3

Datasheet Details

Part number:

TIP34B, TIP34

Manufacturer:

Comset Semiconductors

File Size:

132.53 KB

Description:

Silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: TIP34B, TIP34.
Please refer to the document for exact specifications by model.
