* DC Current Gain
* hFE = 20
* 70 @ IC = 4.0 Adc
* Collector
* Emitter Saturation Voltage
* VCE(sat) = 1.1 Vdc (Max) @ IC = 4.0 Adc
* Excellent Safe Operating Area
* These are Pb
* Free Devices
* MAXIMUM RATINGS Symbol Rating
TIP3055
212.40 KB
Npn silicon power transistors.

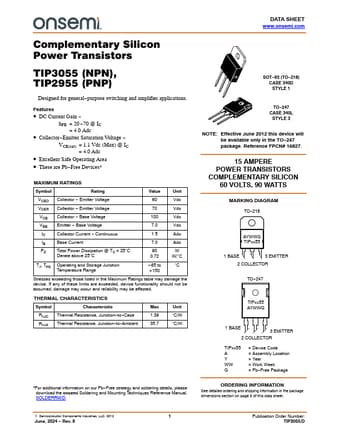

Complementary Silicon Power Transistors
TIP3055 (NPN), TIP2955 (PNP)
Designed for general
*purpose switching and amplifier applications.
Featur.
