CX24113 - Digital Satellite Tuner RF IC

Product Overview

Conexant Systems

Datasheet Details

Part number	CX24113
Manufacturer	Conexant Systems
File Size	820.02 KB
Description	Digital Satellite Tuner RF IC
Datasheet	CX24113 Datasheet

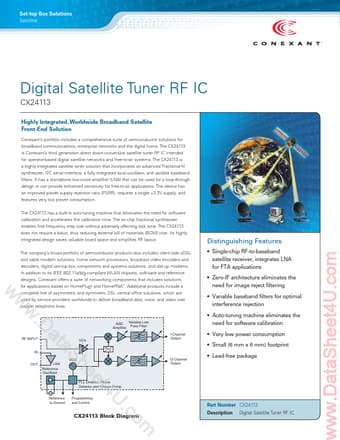

Additional preview pages of the CX24113 datasheet.

Product details

Description

Digital Satellite Tuner RF IC www.DataSheet4U.com Single-chip RF-to-baseband satellite receiver, integrates LNA for FTA applications Set-top Box Solutions Satellite CX24113

Features

very low power consumption. The CX24113 has a built-in auto-tuning machine that eliminates the need for software calibration and accelerates the calibration time. The on-chip fractional synthesizer enables fine frequency step size without adversely affecting lock time. The CX24113 does not require a balun, thus reducing external bill of materials (BOM) cost. Its highly integrated design saves valuable board space and simplifies RF layout. The company’s broad portfolio of semiconductor products a.
