DOCAT050F Surface Mount Oven Stabilized Oscillator

Connor-Winfield’s high stability DOCAT Series is an exceptionally precise frequency standard, excellent for use in cellular base stations, test equipment, Synchronous Ethernet and VSAT applications. Based on an AT-cut crystal, the DOCAT Series offers low aging and tight stability in a 9x14mm surf.

DOCAT050F Features

* OCXO or VCOCXO

* 3.3 Vdc Operation

* SMT Package

* Frequency Stabilities: ±20 ppb, ±50 ppb and ±100 ppb

* Temperature Ranges: 0 to 70°C, -20 to 75°C, -40 to 85°C or -40 to 70°C

* Low Phase Noise

* LVCMOS Output

* RoHS Co

DOCAT050F Datasheet (790.01 KB)

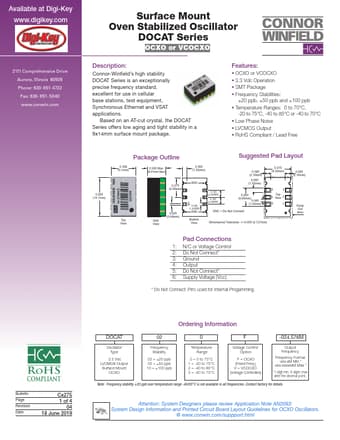

DOCAT050F Datasheet Preview — Preview of DOCAT050F PDF

Datasheet Details

Part number:

DOCAT050F

Manufacturer:

Connor Winfield

File Size:

790.01 KB

Description:

Surface mount oven stabilized oscillator.
