DOCAT051F, DOCAT052F - Surface Mount Oven Stabilized Oscillator

Name: DOCAT051F
SKU: DOCAT051F-1391157

Connor Winfield

📥 Download Datasheet

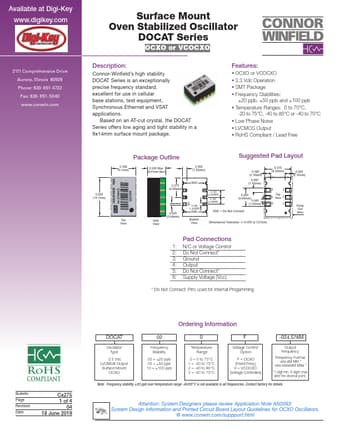

DOCAT051F Datasheet Preview — This datasheet PDF includes multiple part numbers: DOCAT051F, DOCAT052F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	DOCAT051F, DOCAT052F
Manufacturer	Connor Winfield
File Size	790.01 KB
Description	Surface Mount Oven Stabilized Oscillator
Datasheet	DOCAT052F-ConnorWinfield.pdf
Note	This datasheet PDF includes multiple part numbers: DOCAT051F, DOCAT052F. Please refer to the document for exact specifications by model.

DOCAT051F Product details

Description

Connor-Winfield’s high stability DOCAT Series is an exceptionally precise frequency standard, excellent for use in cellular base stations, test equipment, Synchronous Ethernet and VSAT applications.

Features

OCXO or VCOCXO.
3.3 Vdc Operation.
SMT Package.
Frequency Stabilities: ±20 ppb, ±50 ppb and ±100 ppb.
Temperature Ranges: 0 to 70°C, -20 to 75°C, -40 to 85°C or -40 to 70°C.
Low Phase Noise.
LVCMOS Output.
RoHS Compliant / Lead Free 0.555 (14.1mm) Package Outline 0.358 (9.1mm) 0.335 Max (8.51mm Max) 0.275 (6.99mm) Top View Side View 0.025 (0.64mm) 1 Suggested Pad Layout 0.060 (1.52mm) DNC 0.085 (2.
