79L06, 79L05, (79Lxx) 3-Terminal 0.1A Negative Voltage Regulator

79LXX LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR The Contek79LXX family is monolithic fixed voltage regulator integrated c.
SOP-8 1 FEATURES TO-92 1. Output current up to 100mA. Fixed output voltage of -5V, -6V, -8V, -9V, -12V,-15V ,-18V and -24V available.

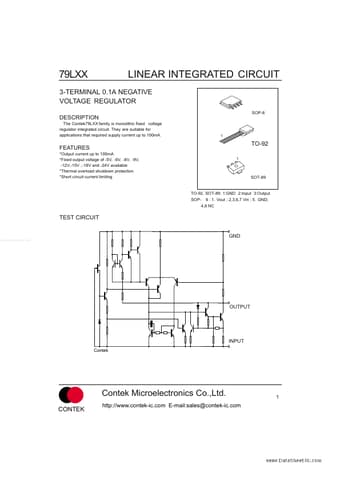

datasheet Preview Page 1 from Datasheet4u.com

79L05_Contek.pdf

79L06 Datasheet Preview — This datasheet PDF includes multiple part numbers: 79L06, 79L05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

79L06, 79L05

Manufacturer:

Contek

File Size:

82.93 KB

Description:

(79Lxx) 3-Terminal 0.1A Negative Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: 79L06, 79L05.
Please refer to the document for exact specifications by model.

Features

* TO-92 1
* Output current up to 100mA
* Fixed output voltage of -5V, -6V, -8V, -9V, -12V,-15V ,-18V and -24V available
* Thermal overload shutdown protection
* Short circuit current limiting SOT-89 TO-92, SOT-89: 1:GND 2:Input 3:Output SOP- 8 : 1. Vout ; 2,3,6,7 Vin ; 5. GND; 4,8 NC T
