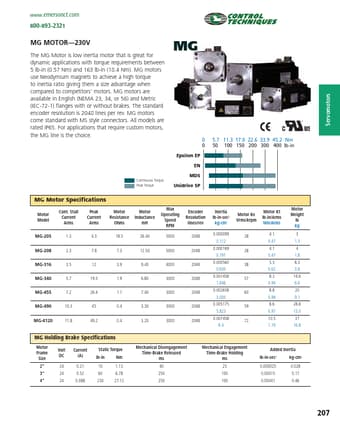

Servomotors www.emersonct.com 800-893-2321 MG MOTOR 230V The MG Motor is low inertia motor that is great for dynamic applications with torque requirements between 5 lb-in (0.57 Nm) and 163 lb-in (18.4 Nm). MG motors use Neodymium magnets to achieve a high torque to inertia ratio giving them a size advantage when compared to competitors‘ motors. MG motors are available in English (NEMA 23, 34, or 56) and Metric (IEC-72-1) flanges with or without brakes. The standard encoder resolution i.
