MG-12232-3 LCD

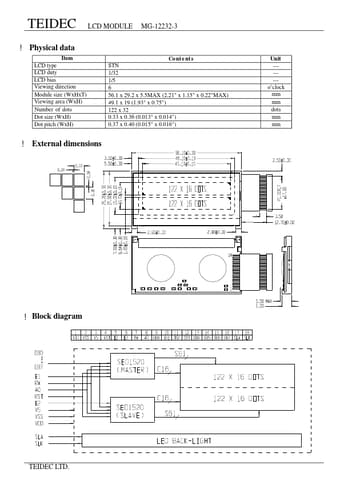

TEIDEC LCD MODULE MG-12232-3 ! Physical data Item LCD type LCD duty LCD bias Viewing direction Module size (WxHxT) Viewing area (WxH) Number of dots Dot size (WxH) Dot pitch (WxH) Co nt e nt s STN 1/32 1/5 6 56.1 x 29.2 x 5.5MAX (2.21" x 1.15" x 0.22"MAX) 49.1 x 19 (1.93" x 0.75") 122 x 32 0.33 x 0.36 (0.013" x 0.014") 0.37 x 0.40 (0.015" x 0.016") ! External dimensions Unit o’clock mm mm dots mm mm !Block diagram TEIDEC LTD. .

MG-12232-3 Datasheet (29.22 KB)

MG-12232-3 Datasheet Preview — Preview of MG-12232-3 PDF

Datasheet Details

Part number:

MG-12232-3

Manufacturer:

TEIDEC

File Size:

29.22 KB

Description:

Lcd.
