CMZ120R075M2 - N-channel Coolin SiC MOS

CMZ120R075M2 Datasheet Preview — Preview of CMZ120R075M2 PDF

Datasheet Details

Part number	CMZ120R075M2
Manufacturer	CoolSemi
File Size	1.06 MB
Description	N-channel Coolin SiC MOS
Datasheet	CMZ120R075M2-CoolSemi.pdf

CMZ120R075M2 Product details

Description

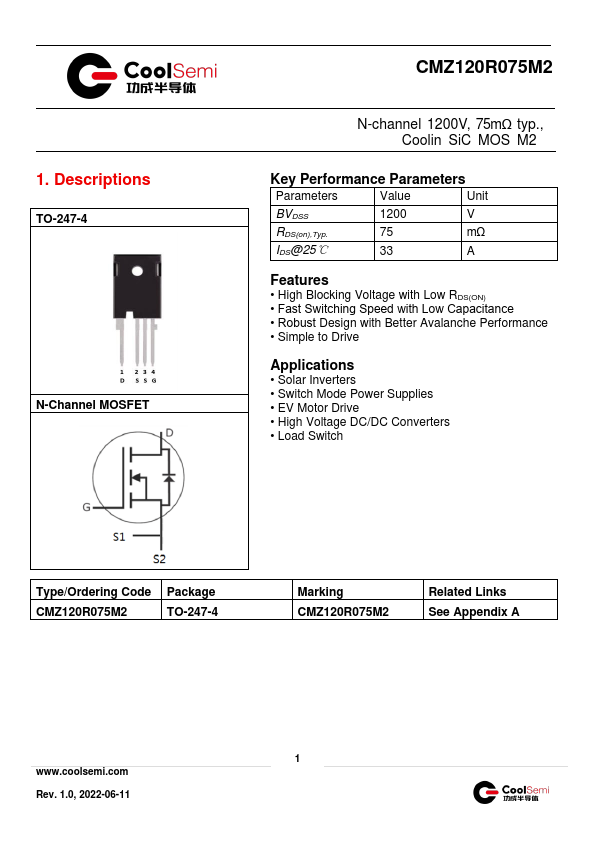

TO-247-4 N-Channel MOSFET CMZ120R075M2 N-channel 1200V, 75mΩ typ., Coolin SiC MOS M2 Key Performance Parameters Parameters Value Unit BVDSS 1200 V RDS(on),Typ.75 mΩ IDS@25℃ 33 A

Features

High Blocking Voltage with Low RDS(ON).
Fast Switching Speed with Low Capacitance.
Robust Design with Better Avalanche Performance.
Simple to Drive.
