SR8201F - Single-chip/single-port 10/100Mbps Ethernet PHYceivers

📥 Download Datasheet

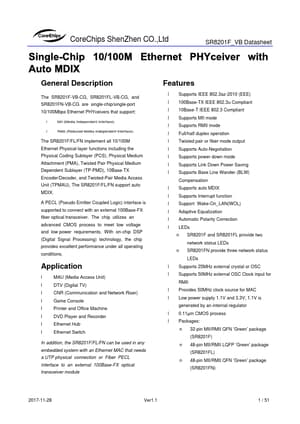

SR8201F Datasheet Preview — Preview of SR8201F PDF

Datasheet Details

Part number: SR8201F
Manufacturer: CoreChips
File Size: 1.85 MB
Datasheet: SR8201F-CoreChips.pdf
Description: Single-chip/single-port 10/100Mbps Ethernet PHYceivers

SR8201F Product details

Description

The SR8201F-VB-CG, SR8201FL-VB-CG, and SR8201FN-VB-CG are single-chip/single-port 10/100Mbps Ethernet PHYceivers that support: l MII (Media Independent Interface) l RMII (Reduced Media Independent Interface) The SR8201F/FL/FN implement all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-TX Encoder/Decoder, and Twisted-Pair Media Access Unit (TPMAU).The SR820

Features

l Supports IEEE 802.3az-2010 (EEE) l 100Base-TX IEEE 802.3u Compliant l 10Base-T IEEE 802.3 Compliant l Supports MII mode l Supports RMII mode l Full/half duplex operation l Twisted pair or fiber mode output l Supports Auto-Negotiation l Supports power down mode l Supports Link Down Power Saving l Supports Base Line Wander (BLW) Compensation l Supports auto MDIX l Supports Interrupt function l Support Wake-On_LAN(WOL) l Adaptive Equalization l Automatic Polarity Correction l LEDs n SR8201F and S.
