G1A122000

Reed Relay

G1A122000 Features

* Outside Dimension：Unit (mm) 1. Molded epoxy body. 2. Sealed construction permits automatic flow soldering and cleaning. 3. High reliability relay. 4. Cost effective. 7.0 7.00 KUAN HSI G1A122000 XXX Date Code 19.50 0.4 2.54 2.54 20.32 3.5 Schematic : Top View (+) 1 2 (-)3 5 Coil Rating

G1A122000 Datasheet (111.42 KB)

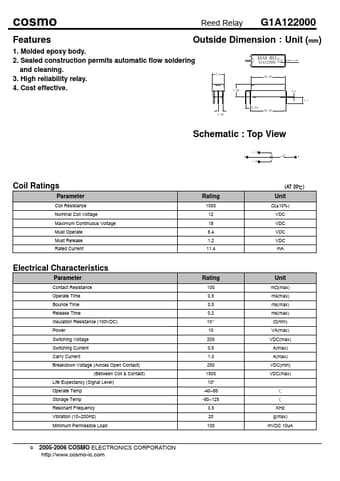

Preview of G1A122000 PDF

Datasheet Details

Part number:

G1A122000

Manufacturer:

Cosmo

File Size:

111.42 KB

Description:

Reed relay.
