KAQW213A - SOLID STATE RELAY

Cosmo

The KAQW213A by Cosmo is a SOLID STATE RELAY. Below is the official datasheet preview.

📥 Download Datasheet

KAQW213A SOLID STATE RELAY by Cosmo - Datasheet Preview — Official preview page of the **KAQW213A** SOLID STATE RELAY datasheet (Cosmo).

Datasheet Details

Part number	KAQW213A
Manufacturer	Cosmo
File Size	310.23 KB
Description	SOLID STATE RELAY
Datasheet	KAQW213A-Cosmo.pdf

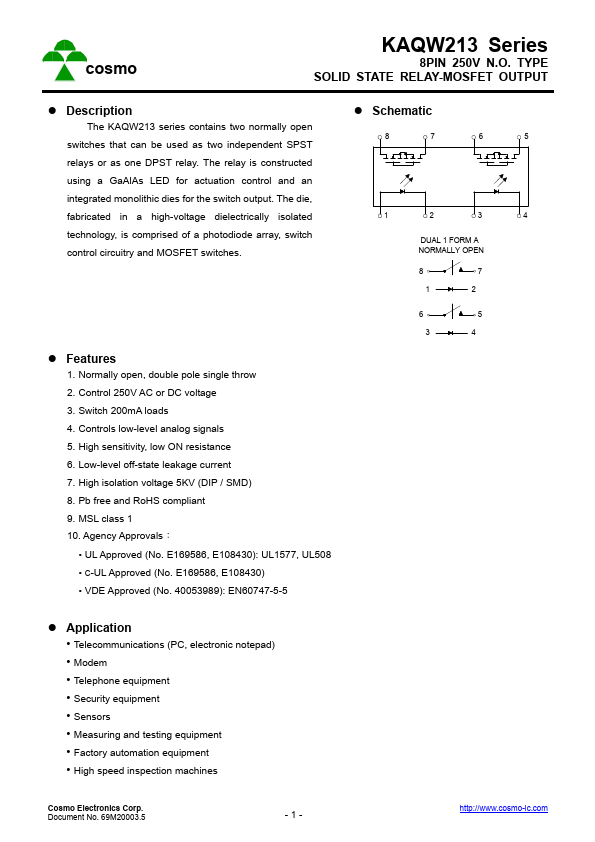

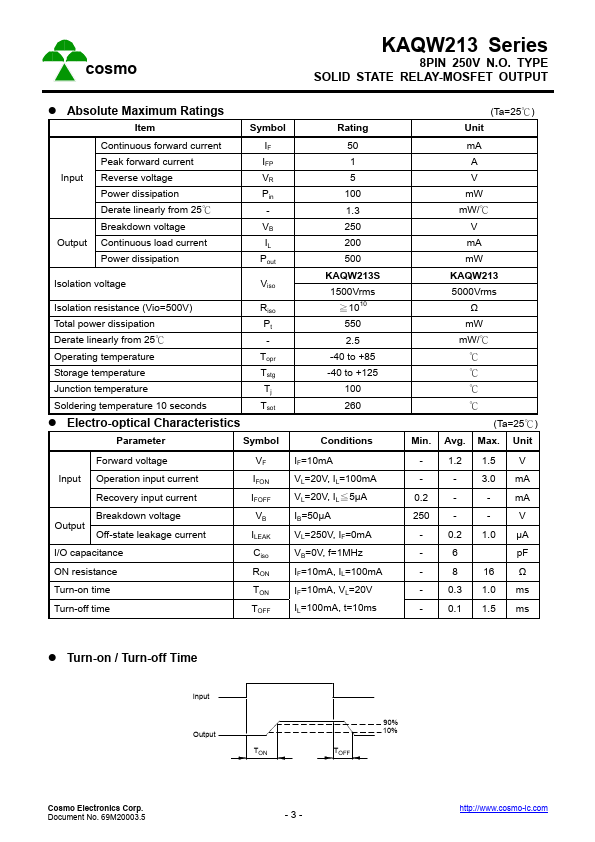

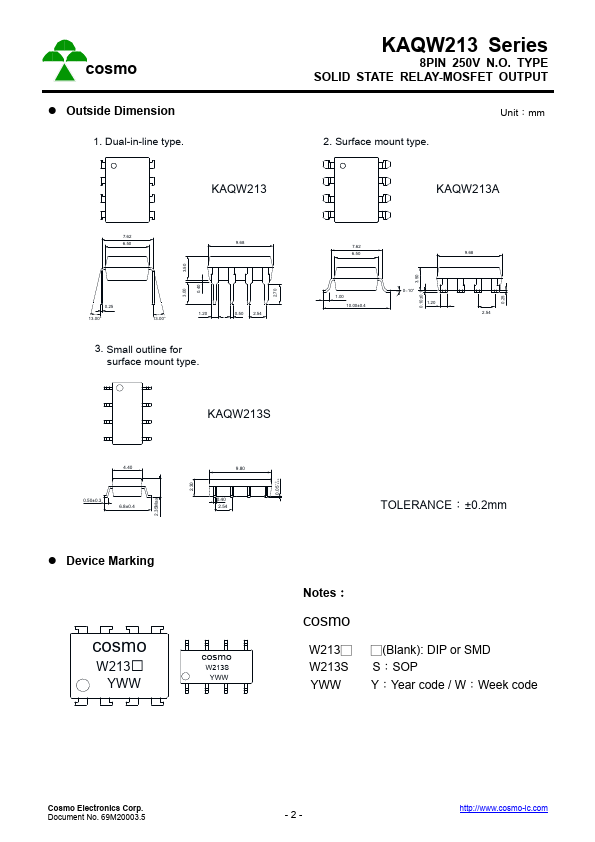

Additional preview pages of the KAQW213A datasheet.

KAQW213A Product details

Description

The KAQW213 series contains two normally open switches that can be used as two independent SPST Schematic 8 7 6 5 relays or as one DPST relay.The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output.The die, fabricated in a high-voltage dielectrically isolated 1 2 3 4 technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.DUAL 1 FORM A NORMALLY OPEN 8 7 1 2 Fea

Features

s 1. Normally open, double pole single throw 2. Control 250V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：.
UL Approved (No. E169586, E108430): UL1577, UL508.
C-UL Approved (No. E169586, E108430).
VDE Approved (No. 40053989): EN60747-5-5 6 5 3 4.
