KAQW213S

SOLID STATE RELAY

KAQW213S Features

* 1. Normally open, double pole single throw 2. Control 250V AC or DC voltage 3. Switch 200mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1

KAQW213S General Description

The KAQW213 series contains two normally open switches that can be used as two independent SPST relays or as one DPST relay. The relay is constructed using a GaAlAs LED for actuation control and an integrated monolithic dies for the switch output. The die, fabricated in a high-voltage dielectrically.

KAQW213S Datasheet (253.99 KB)

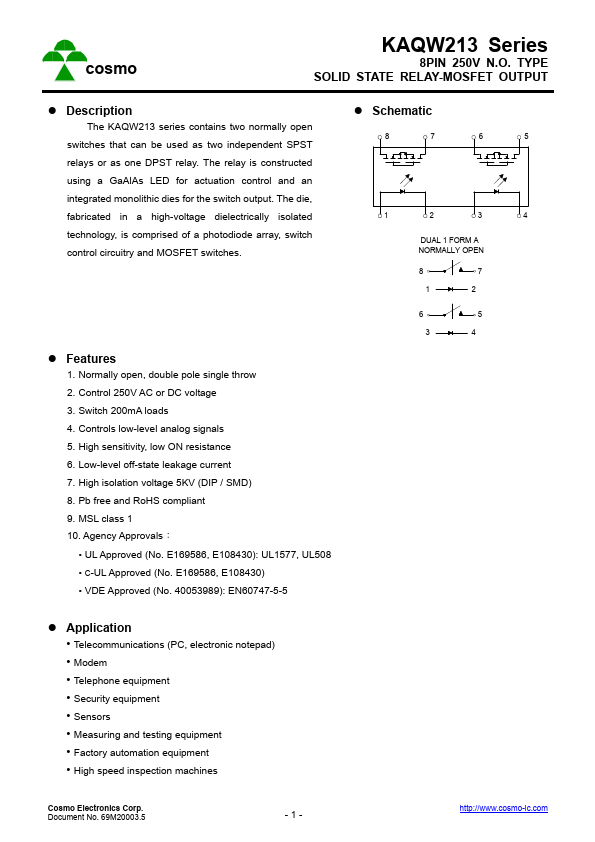

Preview of KAQW213S PDF

Datasheet Details

Part number:

KAQW213S

Manufacturer:

Cosmo

File Size:

253.99 KB

Description:

Solid state relay.

📁 Related Datasheet

KAQW213 SOLID STATE RELAY (Cosmo)

KAQW213A SOLID STATE RELAY (Cosmo)

KAQW213H SOLID STATE RELAY (Cosmo)

KAQW210 SOLID STATE RELAY (Cosmo)

KAQW210A SOLID STATE RELAY (Cosmo)

KAQW210H SOLID STATE RELAY (Cosmo)

KAQW210HA SOLID STATE RELAY (Cosmo)

KAQW210S SOLID STATE RELAY (Cosmo)

KAQW212 SOLID STATE RELAY (Cosmo)

KAQW212A SOLID STATE RELAY (Cosmo)

TAGS

KAQW213S SOLID STATE RELAY Cosmo

Image Gallery

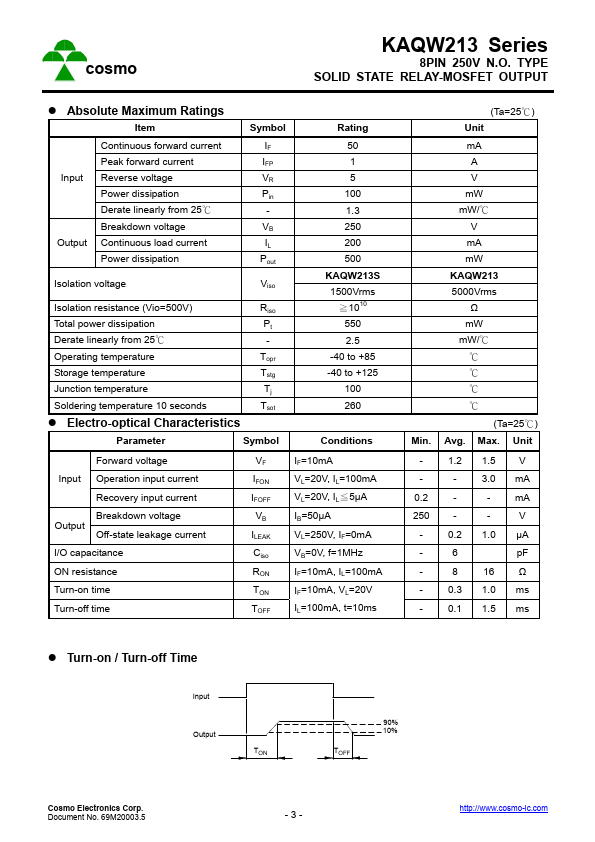

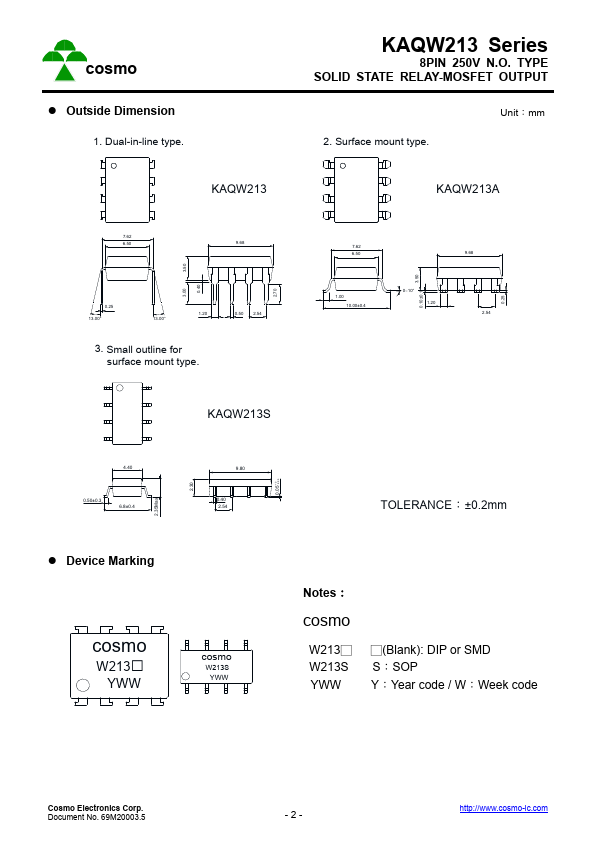

KAQW213S Datasheet Preview Page 2 KAQW213S Datasheet Preview Page 3
