KP1510S, KP1510 Datasheet - Cosmo

KP1510S 8PIN IGBT GATE DRIVE PHOTOCOUPLER

KP1510S Features

* 1. High noise immunity characterized by 25kV/μs minimum common mode rejection(CMR)at VCM=1500V 2. 2.5A maximum peak output current 3. ICC = 5mA maximum supply current 4. Wide supply voltage range from 15V to 30V 5. Fast power switching application

* 500ns max. propagation delay

* 100

KP1510-Cosmo.pdf

This datasheet PDF includes multiple part numbers: KP1510S, KP1510. Please refer to the document for exact specifications by model.

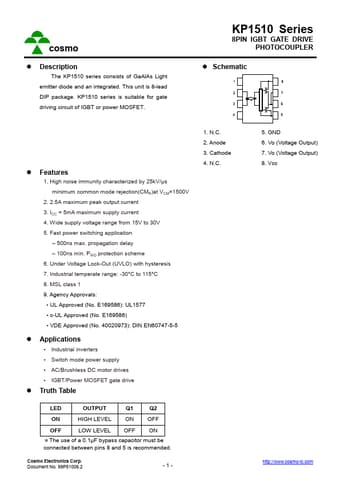

KP1510S Datasheet Preview Page 2 KP1510S Datasheet Preview Page 3

Datasheet Details

Part number:

KP1510S, KP1510

Manufacturer:

Cosmo

File Size:

315.40 KB

Description:

8pin igbt gate drive photocoupler.

Note:

This datasheet PDF includes multiple part numbers: KP1510S, KP1510.
Please refer to the document for exact specifications by model.
