KPLT1320M30, FIBER OPTIC TRANSMITTING MODULE

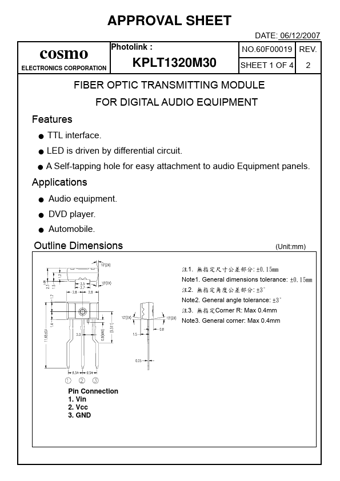

APPROVAL SHEET cosmo Photolink : KPLT1320M30 ELECTRONICS CORPORATION DATE: 06/12/2007 NO.60F00019 REV.SHEET 1 OF 4 2 FIBER OPTIC TRANSMITTING MODUL.

datasheet Preview Page 1 from Datasheet4u.com

KPLT1320M30-Cosmo.pdf

KPLT1320M30 Datasheet Preview — Preview of KPLT1320M30 PDF

Datasheet Details

Part number:

KPLT1320M30

Manufacturer:

Cosmo

File Size:

149.33 KB

Description:

FIBER OPTIC TRANSMITTING MODULE

Features

* TTL interface.
* LED is driven by differential circuit.

Applications

* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions (Unit:mm) 1. : ±0.15mm Note1. General dimensions tolerance: ±0.15mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm Pin Connection 1. Vin 2. Vcc 3. GND APPROVAL SH
