KPLT1320M60, KPLT1320M50, FIBER OPTIC TRANSMITTING MODULE

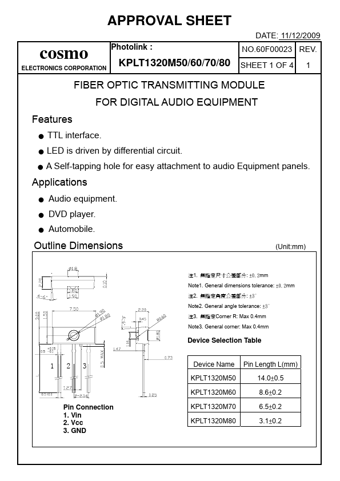

APPROVAL SHEET cosmo Photolink : KPLT1320M50/60/70/80 ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F00023 REV.SHEET 1 OF 4 1 FIBER OPTIC TRANSMITT.

datasheet Preview Page 1 from Datasheet4u.com

KPLT1320M50-Cosmo.pdf

KPLT1320M60 Datasheet Preview — This datasheet PDF includes multiple part numbers: KPLT1320M60, KPLT1320M50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KPLT1320M60, KPLT1320M50

Manufacturer:

Cosmo

File Size:

170.62 KB

Description:

FIBER OPTIC TRANSMITTING MODULE

Note:

This datasheet PDF includes multiple part numbers: KPLT1320M60, KPLT1320M50.
Please refer to the document for exact specifications by model.

Features

* TTL interface.
* LED is driven by differential circuit.

Applications

* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions (Unit:mm) 123 Pin Connection 1. Vin 2. Vcc 3. GND 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm Device Sel
