KPLT2500M20, KPLT2500M10 - FIBER OPTIC TRANSMITTING MODULE

KPLT2500M20 Description

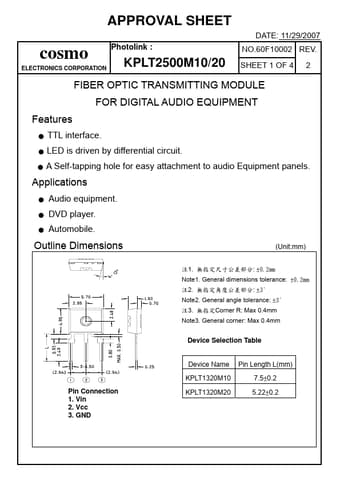

APPROVAL SHEET cosmo Photolink : KPLT2500M10/20 ELECTRONICS CORPORATION DATE: 11/29/2007 NO.60F10002 REV.SHEET 1 OF 4 2 FIBER OPTIC TRANSMITTING MO.

KPLT2500M20 Features

* TTL interface.
* LED is driven by differential circuit.

KPLT2500M20 Applications

* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm Device Selection Table Pin Connection 1. Vin 2. Vc

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KPLT2500M20, KPLT2500M10. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KPLT2500M20, KPLT2500M10
Manufacturer
Cosmo
File Size
152.44 KB
Datasheet
KPLT2500M10-Cosmo.pdf
Description
FIBER OPTIC TRANSMITTING MODULE
Note
This datasheet PDF includes multiple part numbers: KPLT2500M20, KPLT2500M10.
Please refer to the document for exact specifications by model.
