* TTL interface.
* LED is driven by differential circuit.
* A Self-tapping hole for easy attachment to audio Equipment panels. Applications
* Audio equipment.
* DVD player.
* Automobile. Outline Dimensions (Unit:mm) 123 Pin Connection 1. Vin 2. Vcc 3. GND 1. : ±0.2mm
KPLT2500M60 Datasheet (170.39 KB)
KPLT2500M60
Cosmo
170.39 KB
Fiber optic transmitting module.

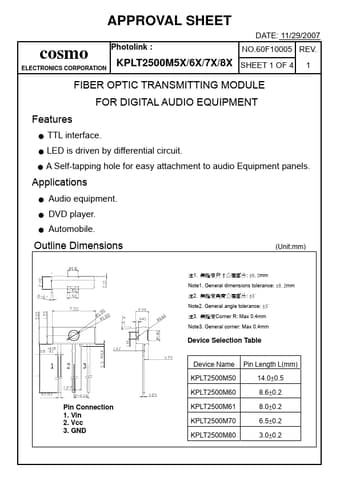

APPROVAL SHEET
DATE: 11/29/2007
cosmo Photolink :
NO.60F10005 REV.
ELECTRONICS CORPORATION KPLT2500M5X/6X/7X/8X SHEET 1 OF 4 1
FIBER OPTIC TRANSM.
