KT101TA, KT101T, 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER

cosmo KT101T Series 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER z .
The KT101T series consist of an infrared emitting diode, optically coupled to a phototransistor detector, and is incorporated in a 4 pin LSOP wide bod.

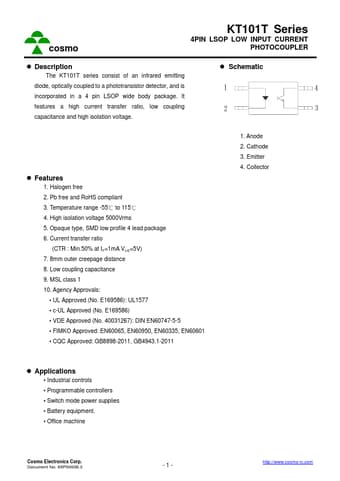

datasheet Preview Page 1 from Datasheet4u.com

KT101T-Cosmo.pdf

KT101TA Datasheet Preview — This datasheet PDF includes multiple part numbers: KT101TA, KT101T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KT101TA, KT101T

Manufacturer:

Cosmo

File Size:

166.88 KB

Description:

4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: KT101TA, KT101T.
Please refer to the document for exact specifications by model.

Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage. z Schematic 1 2 4 3 z Features 1. Halogen free 2. Pb free and RoHS compliant 3. Temperature range -55℃ to 115℃ 4. High isolation voltage 5000Vrms 5. Opaque type, SMD low profile 4 lead package 6. Current transfer

Applications

* Industrial controls
* Pro
