KT101TB, KT101T 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER

Cosmo

Description

cosmo KT101T Series 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER z .
The KT101T series consist of an infrared emitting diode, optically coupled to a phototransistor detector, and is incorporated in a 4 pin LSOP wide bod.

📥 Download Datasheet

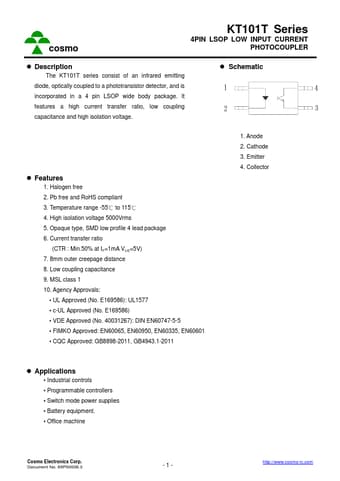

KT101TB Datasheet Preview — This datasheet PDF includes multiple part numbers: KT101TB, KT101T. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: KT101TB, KT101T
Manufacturer: Cosmo
File Size: 166.88 KB
Datasheet: KT101T-Cosmo.pdf
Description: 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER
Note: This datasheet PDF includes multiple part numbers: KT101TB, KT101T.
Please refer to the document for exact specifications by model.

Features

* a high current transfer ratio, low coupling capacitance and high isolation voltage. z Schematic 1 2 4 3 z Features 1. Halogen free 2. Pb free and RoHS compliant 3. Temperature range -55℃ to 115℃ 4. High isolation voltage 5000Vrms 5. Opaque type, SMD low profile 4 lead package 6. Current transfer

Applications

* Industrial controls
* Pro
