CXA1816

LED

CXA1816 Features

* Available in ANSI white bins as well as 4-step and 2-step EasyWhite® bins at 2700 K, 3000 K, 3500 K, 4000 K and 5000 K CCT

* Available in ANSI white bins as well as 4-step EasyWhite bins at 5700 K and 6500 K CCT

* Available in 70-, 80-, 90- and 93‑minimum CRI options

CXA1816 General Description

The XLamp CXA1816 LED array expands Cree’s family of high‑flux, multi‑die arrays in a smaller, the easy‑to‑use platform. With XLamp lighting‑class reliability, CXA1816’s small, uniform emitting surface enables both directional and non‑directional lighting applications including lamp retrofit and lum.

CXA1816 Datasheet (1.59 MB)

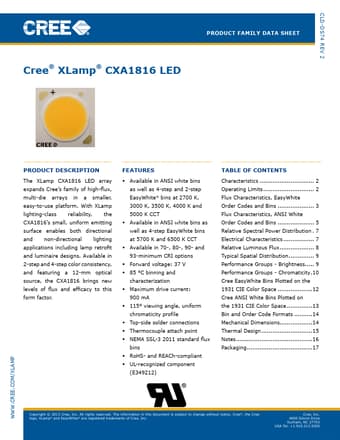

Preview of CXA1816 PDF

Datasheet Details

Part number:

CXA1816

Manufacturer:

Cree

File Size:

1.59 MB

Description:

Led.
