CXA1814N, 8 mm VCR ATF

CXA1814N 8 mm VCR ATF .
The CXA1814N is an IC developed for ATF (Automatic Track Finding) in 8 mm VCRs, and integrates the major functions necessary for ATF onto a single chi.

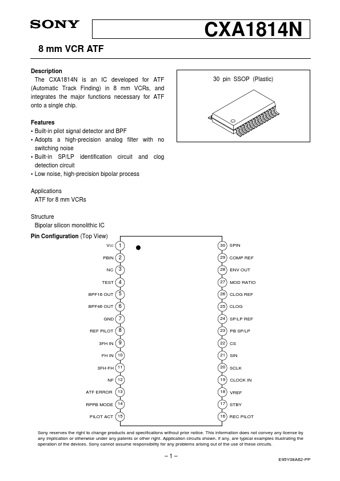

datasheet Preview Page 1 from Datasheet4u.com

CXA1814N_SonyCorporation.pdf

CXA1814N Datasheet Preview — Preview of CXA1814N PDF

Datasheet Details

Part number:

CXA1814N

Manufacturer:

Sony Corporation

File Size:

374.18 KB

Description:

8 mm VCR ATF

Features

* Built-in pilot signal detector and BPF
* Adopts a high-precision analog filter with no switching noise
* Built-in SP/LP identification circuit and clog detection circuit

Applications

* ATF for 8 mm VCRs Structure Bipolar silicon monolithic IC Pin Configuration (Top View) VCC PBIN NC TEST BPF16 OUT BPF46 OUT GND REF PILOT 3FH IN 30 pin SSOP (Plastic) 1 2 3 4 5 6 7 8 9 30 SPIN 29 COMP REF 28 27 ENV OUT MOD RATIO 26 CLOG REF 25 CLOG 24 SP/LP REF 23 PB SP/LP 22 CS 21 SIN FH IN 1
